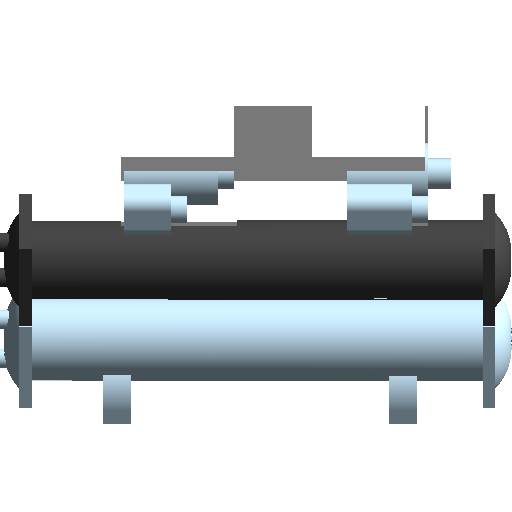

30HXC200E
- 可见性
- Maintenance Zone Bottom Visibility 0
- Maintenance Zone Top Visibility 0
- Maintenance Zone Right Visibility 0
- Maintenance Zone Back Visibility 0
- Maintenance Zone Front Visibility 0
- Clearance Zone Visibility 0
- Maintenance Zone Left Visibility 0
- 尺寸标注
- G 326mm
- S1 62.5mm
- W3 2940mm
- E1 200mm
- A2 256.700012207031mm
- Y3 600mm
- F 691mm
- S 125mm
- Y4 420mm
- R2 80mm
- L2D_Min 0mm
- C1 318mm
- Y5__ve -300mm
- D 283mm
- R 125mm
- Maintenance Zone Right Depth 3245mm
- Y5 300mm
- W2D 99.9999999999999mm
- L1 1633mm
- A 272mm
- R3 100mm
- Maintenance Zone Under Depth 1816mm
- MZONU__ve -1816mm
- L3 9798mm
- Maintenance Zone Over Depth 3632mm
- L2__ve -2986mm
- L2 2986mm
- Y3__ve -600mm
- Y4__ve -420mm
- E 1941mm
- W1 490mm
- R1 62.5mm
- A1 302mm
- L2D 99.9999999999999mm
- Maintenance Zone Left Depth 3245mm
- C 304mm
- Maintenance Zone Front Depth 980mm
- H 1828mm
- B 332mm
- B1 166mm
- Maintenance Zone Back Depth 980mm
- Y2 720mm
- C2 270.300018310547mm
