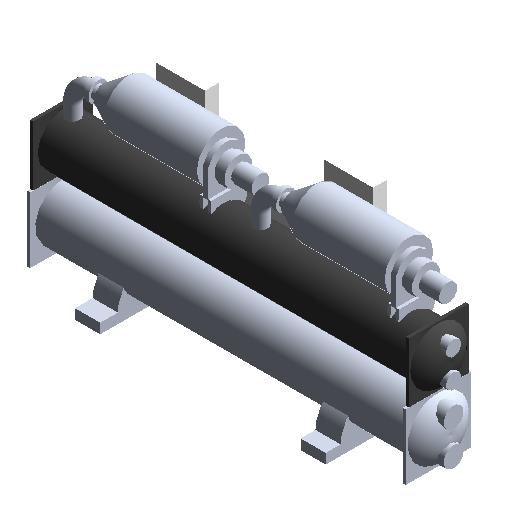

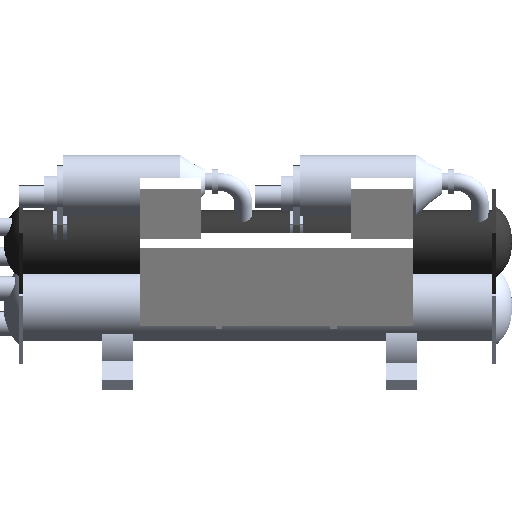

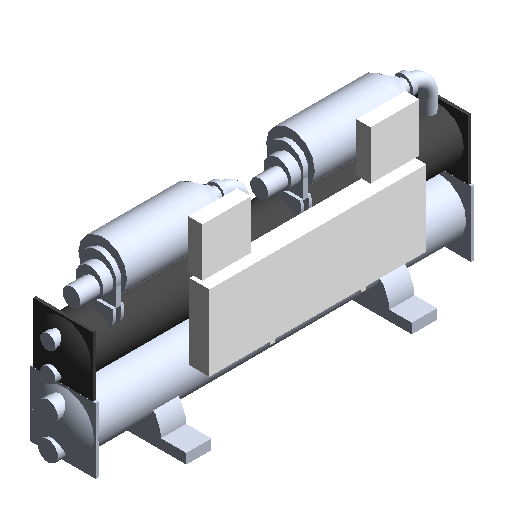

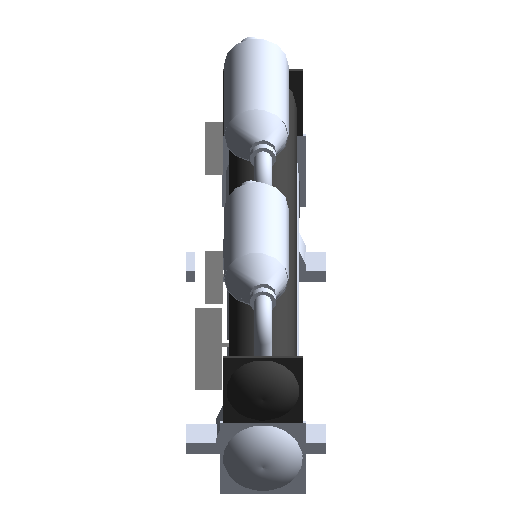

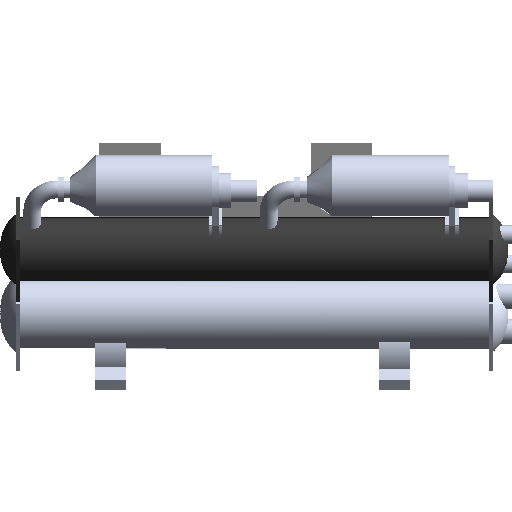

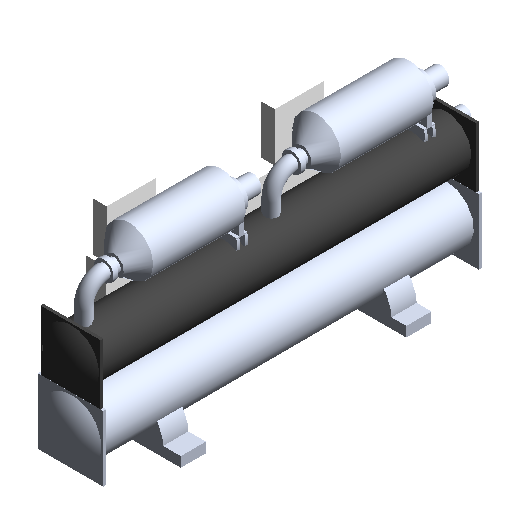

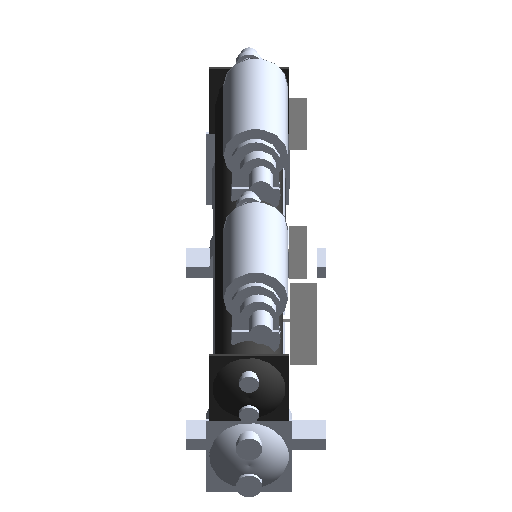

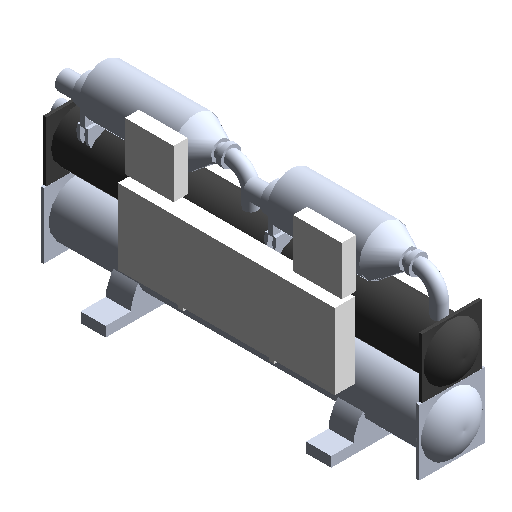

- 缩略图
- 3D
规格
30XW1002
- 可见性
- Maintenance Zone Bottom Visibility 0
- Maintenance Zone Right Visibility 0
- Maintenance Zone Front Visibility 0
- Maintenance Zone Back Visibility 0
- Maintenance Zone Left Visibility 0
- Clearance Zone Visibility 0
- Maintenance Zone Top Visibility 0
- 尺寸标注
- J2__ve -3699mm
- DI2 150mm
- Maintenance Zone Left Depth 4029mm
- MZONU__ve -2239mm
- H 2239mm
- D 230mm
- A 284mm
- J2 3699mm
- A3 247.5mm
- RI2 75mm
- DI1 150mm
- Maintenance Zone Front Depth 1050mm
- RI4 100mm
- E3 484.5mm
- B1 155.5mm
- W3 3150mm
- C2 276.675018310547mm
- Maintenance Zone Over Depth 2239mm
- W2D 99.9999999999999mm
- Maintenance Zone Under Depth 2239mm
- DI4 200mm
- J1 2014.5mm
- A1 297.5mm
- Maintenance Zone Back Depth 1050mm
- G1 525mm
- F 577mm
- E 1845mm
- H2 919.5mm
- RI3 100mm
- Maintenance Zone Right Depth 4029mm
- A2 252.875mm
- E1 242.25mm
- L3 12087mm
- B 311mm
- L2D_Min 0mm
- DI3 200mm
- H1 1119.5mm
- A4 70mm
- A5 170mm
- C1 325.5mm
- L2D 99.9999999999999mm
- RI1 75mm
- C 340mm
- I 867mm
- 标识数据
- 制造商 ---
- URL ---
- 类型图像 ---
- 部件代码 ---
- 类型注释 ---
- 成本 ---
- 注释记号 ---
- 型号 ---
- 说明 ---
- 图形
- Use Minimum Symbol Size 0
- 机械
- MC Flow Factor 1
分类
模型格式 rfa
适配软件
特点
上传时间 2020-06-28
构件有问题？点我反馈
构件品牌 开利空调
